BEAM017062-2RS軸承
BEAM017062-2RS軸承是SKF公司同時面向工業配套和維修市場的產品，鼎力晟業同時代理此兩項業務，不僅為批量采購的用戶提供優惠的SKF BEAM017062-2RS軸承，同時也為零散采購用戶提供價格優惠的及時供貨服務。
型號：BEAM017062-2RS
品牌：SKF
內徑：17
外徑：62
厚度：25
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM017062-2RS軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18922176822 郵箱：sales@gzbearing.cn

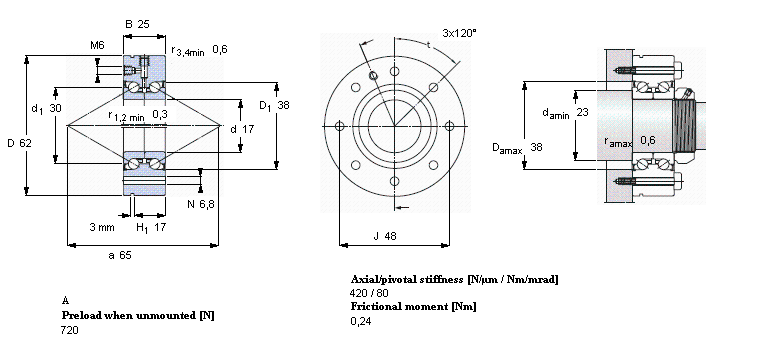

SKF BEAM017062-2RS尺寸圖紙
BEAM017062-2RS軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 17 | 62 | 25 | 19 | 31 | 1,16 | 3800 | 0,45 | BEAM 017062-2RS | BEAM 17/62/C 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2Z軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2RS軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
