FBSA207/QFC軸承
訂購SKF FBSA207/QFC軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF FBSA207/QFC軸承。
型號：FBSA207/QFC
品牌：SKF
內徑：35
外徑：90
厚度：86
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA207/QFC軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18922176822 郵箱：sales@gzbearing.cn

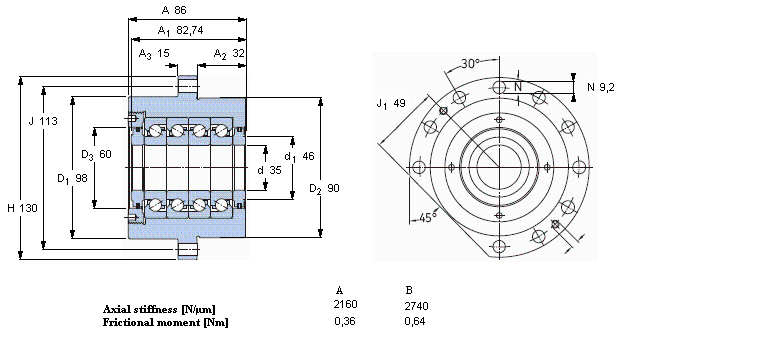

SKF FBSA207/QFC尺寸圖紙
FBSA207/QFC軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 86 | 59,495 | 196 | 7,3 | 3500 | 1750 | 4,6 | FBSA 207/ QFC | BSQU 235 TFT | |
